1. LOW PROFILE DOUBLE ALIGNMENT SCISSOR LIFT
- With hydraulic safety lock and mechanical spline safety claw system, automatic engaged during descending process, can lock the position with mechanic spline safety lock to ensure safety and reliability.
- Equipped with hydraulic system, failure protection and overload protection valve and anti-surge valve device, which can ensure the lifting platform will not drop rapidly in case of hydraulic pipe broken.
- Secondary lift adopts extendable platform makes the total range up to 1500-1800mm,with long life time, stable and reliable.
- The slider made of ultra wear-resisting, high molecular material with limit plate is used, no filing of lubrication oil needed, the service life is long, the operation is stable and reliable.
- The position of the steering wheel for the front wheels is adjustable and the extended side sliding plates can adapt to more types of vehicle models.
FEATURES

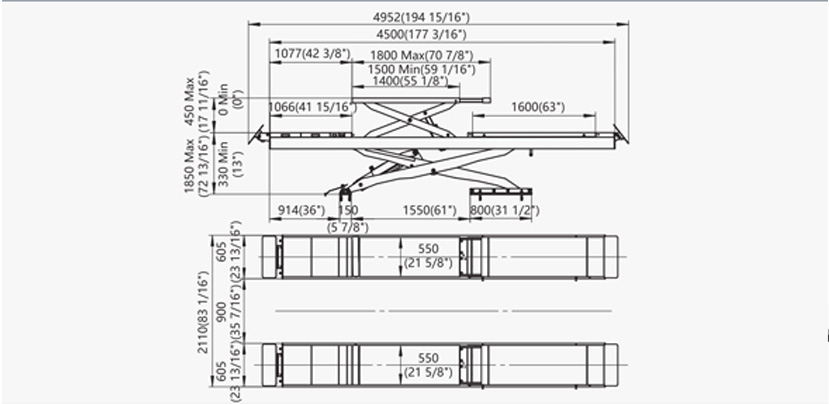

OVERALL DIMENSION
Scissor type double layer low profile structure, built on surface of ground, good synchronization, taking up less space

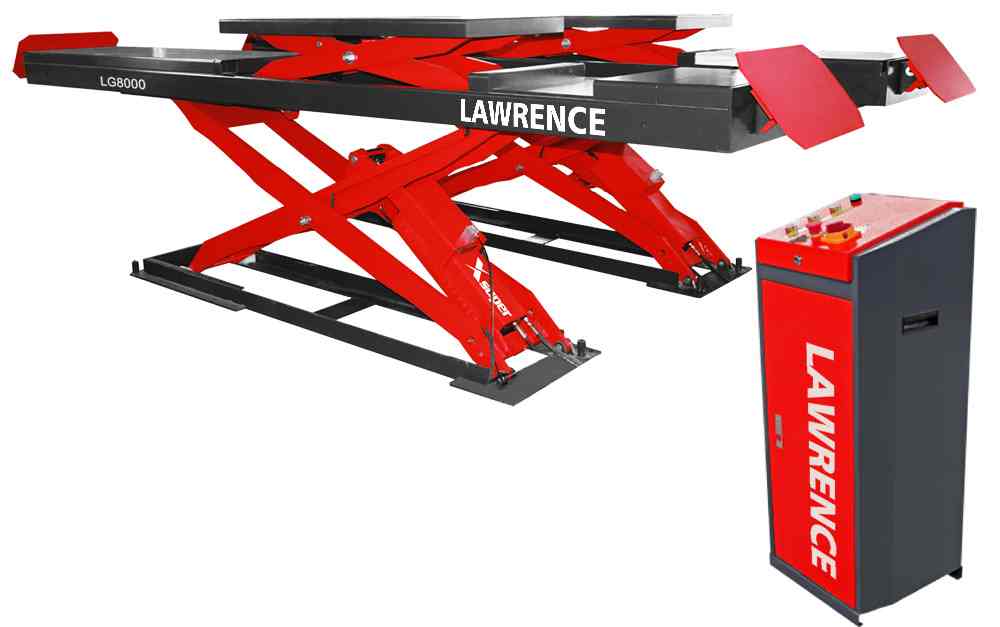

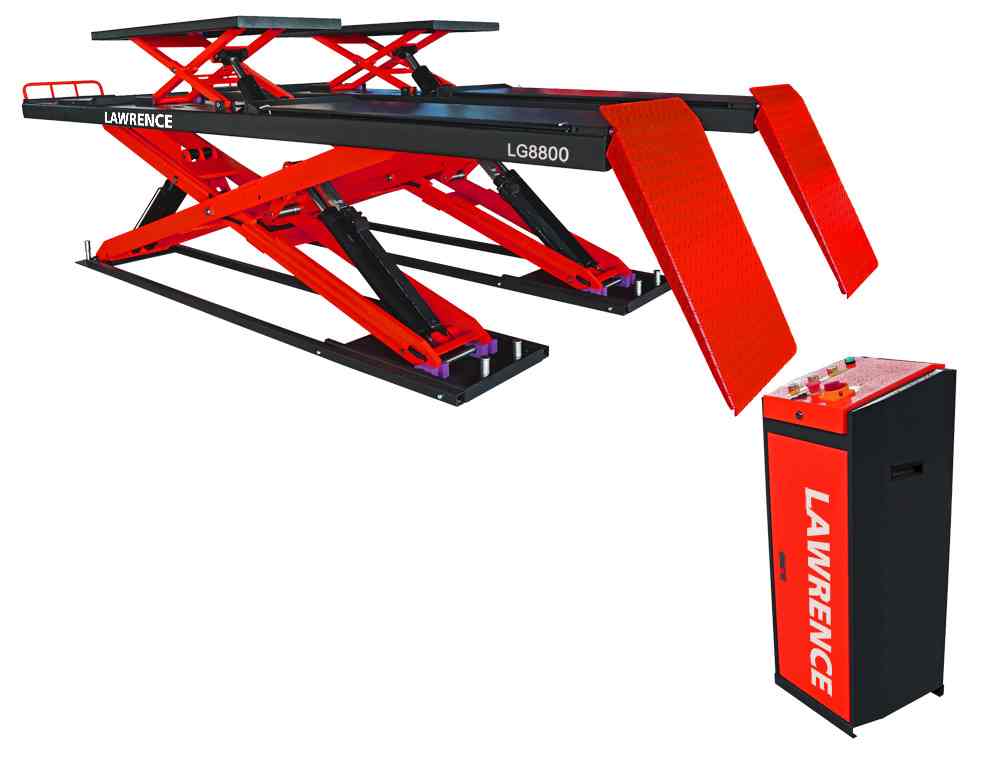

2. FLUSH-MOUNT DOUBLE ALGNMENT SCISSOR LIFT
- Equipped with hydraulic system failure protection and overload protection valve and anti-surge valve device, which can ensure the lifting platform will not drop rapidly in case of hydraulic pipe broken.
- The slider made from ultra wear-resisting high molecular material with limit plate is used, no filling of lubrication oil needed, the service life is long, the operation is stable and reliable.
- Adopting high-quality hydraulic and electrical and electronic components from ltaly, Germany, Japan, etc.
- Equipped with levelling inspection and alarming device, good levelling capability with levelling tolerance adjustable, especially good for 4 wheels alignment inspection.
- The main structural parts are automatically welded by robot to ensure good welding consistency, high strength, and beautiful welding line.
FEATURES

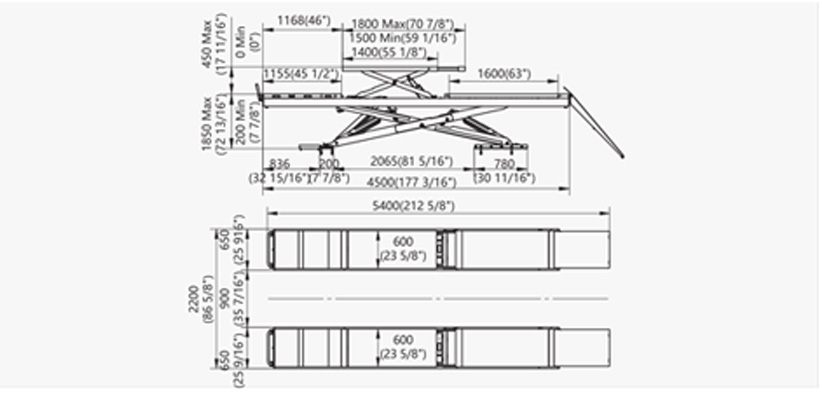

OVERALL DIMENSION
LG8000S:Scissor type double layer low profile structure,built underground, taking up less space.

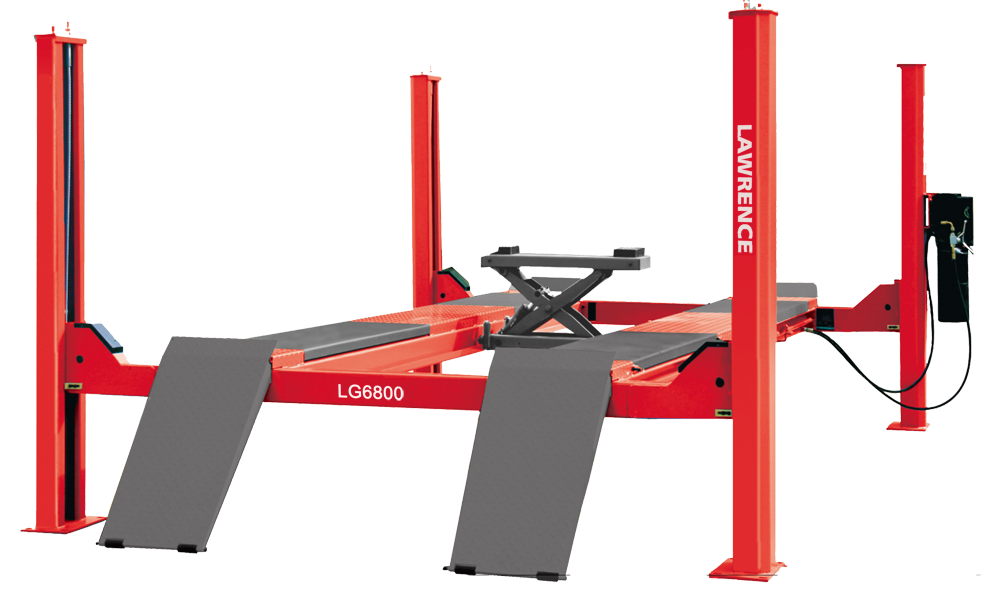

3. Four Wheel Alignment, Four Post Lift
- 4500kg lifting capacity, tested to meet 120% dynamic and 150% static load professional test standards.
- The position of the steering wheel for the front wheels is adjustable and the extended side sliding plates can adapt to more types of vehicle models.
- Equipped with sliding rails for the secondary lift, optional with several types of secondary lifting platforms.
- Platform levelling is convenient and accurate, adapt to high accuracy four wheels alignment of high accuracy.
- Equipped with manual descending device in case of power outrage.
FEATURES
Ordinary wheel alignments are gradually eliminated by the market because of damaged rims

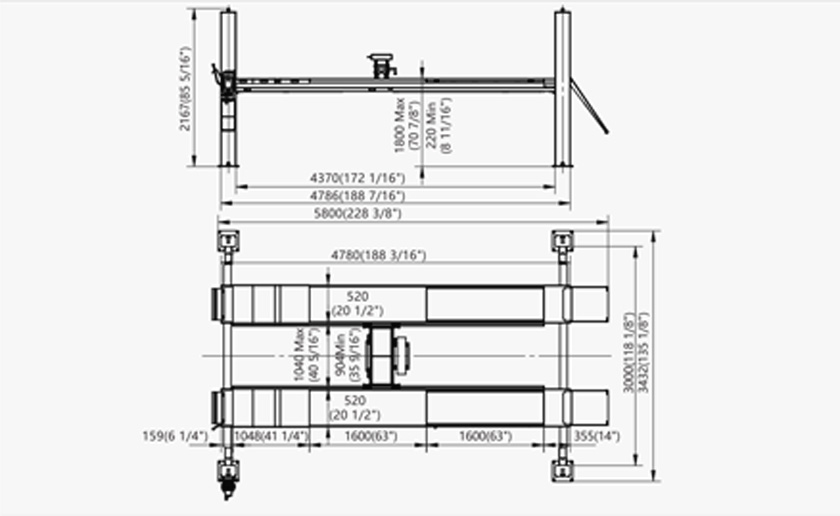

OVERALL DIMENSION
Width between column is 3000mm, usable length of the runway is 4780mm,vice runway can be moved freely, suitable for vehicles with different wheelbases and four wheel alignment.
